Professional Manufacture of Tortilla Making Machine Doritos Chips Processing Line

Model NO.: AHT-27
Minimum order quantity: 1 set
Country of Origin: Jinan,Shandong Province,China

Quantity:

Product Description

Product description

AHT-27 Tortilla Chips Making Machines is a twin screw extruder that is a core machine in the snacks chips production line to produce corn chips and filled snacks.

ANT-27 twin screw extruder can be used to make high quality chip snacks which can meet different requirement of chip snacks needs in differnet countries.

The twin screw extruder of our company is well designed, especially for large scale production of batch products and continuous production of chip snacks.

NO.	Name	Brief introduction
1	Raw material	Corn flour, masa flour
2	Basic Recipe	Water ,food grade additives
3	Processing flow	Mixing -Extrusion - Sheeting/cutting-Conveying-Frying- Deoiling-Cooling-Packing
4	Equipment	Mixer; Screw elevator; Double screw extruder; Air conveyor; Dryer with cooler.
5	Final products	Corn tortilla chips food Triangle, Hexagon chips
6	Machine material	Stainless steel 304 or as customer’s request

Product sample

Detailed information

	Name	Automatic multi grains flour handing, dosing,storage, weigh transfer system
	Capacity	200kg/h-1500kg/h,depend on factory space, storage silo,
	Features	1. Used to feeding, storage, transfer,weigh mixing rice flour , ready go to extruder machines 2. Fully automatic, labor cost 3. Fully stainless steel materials 304 made 4. Automatic controlling 5. High precision 6. Dust collection
	Working Principle	Flour transferred by feeding station to storage silo, screw conveyor transfer flour to the weigher machine per batch, flour transfer to the mixing machine, under high speed, ready go to extrusion system

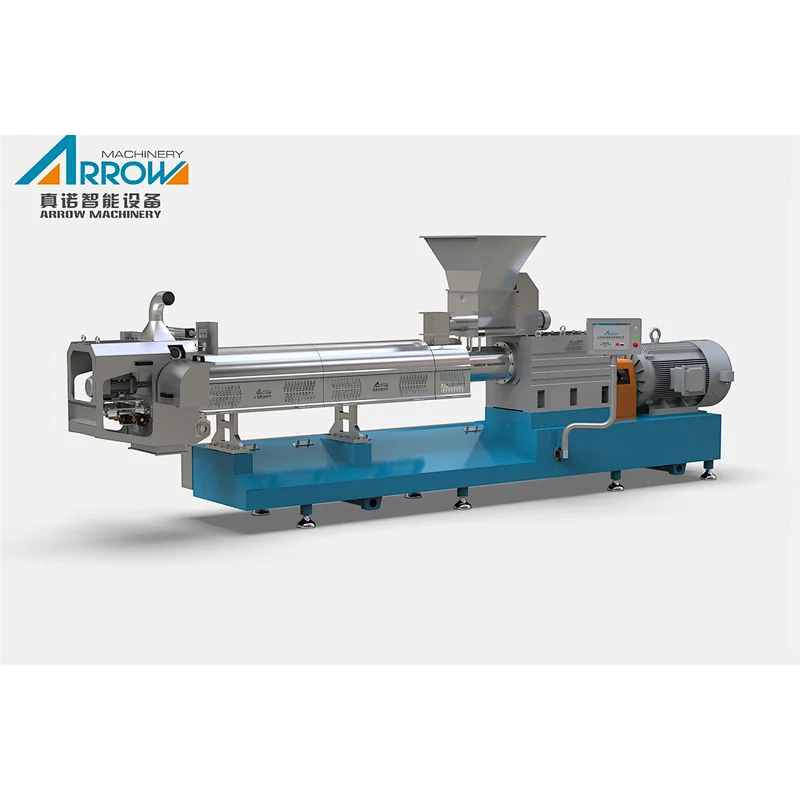

	Name	Double Screw Extruder
	Capacity	200kg/h-1000kg/h depend on food shape
	Usage	The raw material is cured and puffed in extruder, becoming different shapes of puffing snacks with molds changing.
	Working principle	It consists of 1. Feeding system, 2. Extruding system, 3. Cutting system, 4. Heating system; 5. Cooling system 5. Controlling system. Grains flour get extruded,heated under high pressure formed into various by different forming die nozzles, ready for the flaking, drying or toasting

The modular design and the lean concept of the system make the operation and maintenance of the twin screw extruder easy and convenient, while meeting high hygienic production standards.

	Name	Chips forming cutting machine
	Capacity	200kg/h-1000kg/h depend on food shape
	Usage	Provide continuous shaping, cutting for the chips food
	Working principle	It consists of 1. Convey system 2. Cutting system 3. Controlling 4. Discharging system Features: Automatic controlling Speed adjustable Cutting gap adjustable

The twin screw extruder of Shandong Arrow twin achieve continuous production of high quality finished chip snacks.

	Name	Continuous fryer machine
	Capacity	200kg/h-1000kg/h depend on food shape
	Usage	Provide continuous frying job for the chips food
	Working principle	It consists of 1. Feeding system, 2. Frying system, 3. Heating system; 4. Controlling system. 5. Oil filtering system 6. Oil feeding system Automatic oil circulation system provides oil automatically, continuously, Labor cost saved

	Name	Flavoring machine
	Capacity	200kg/h-1500kg/h depend on food, moisture
	Usage	Used for chips,snacks food flavoring use
	Working Principle	The material is stainless steel 304. Machine consist of below components: 1. Elevator 2. Rotary drum 3.Powder feeding 4.Controlling system Features: 1. Flavor speed adjustable by inverter 2. Wholle SS made 3.Wheels for easy move

Most important is that the design of our twin screw extruder is very flexible. Barrel temperature regulation of the twin screw extruder is flexible and controllable that can ensure the quality of chip snacks.

European type modularround barrel
Barrel: European modular 4D-round barrel design, equipped with alloy lining, long work life. The temperature of each zone is controlled independently.
Shandong Arrow Tortilla Making Equipment

Shandong Arrow Tortilla Making Equipment

Modularscrew:can adapt to different materials and easy to be changed, don’t need to change full piece of screw, only a part of it. Made of hard alloy, strong wear-resistant.
snacks packaging production line

The cutter of the AHT-27 twin screw extruder can be moved in multiple directions, so that the user can change the cutter head even during the chip snacks productin and adjust the cutter during production.Thecutter of twin screw extruder can be readjusted during chip snacks production, the blade head of the twin screw extruder can be replaced without stopping production to improve the utilization of the main motor.
Frame: International easy cleaning design
User-friendly automation system forefficient and safe production.
PLC control system, touching screw.
The memory storage function of various parameter settings for users to use
The system has alarm processing, alarm data viewing, and shutdown protection functions
twin screw extruder

Customer case
chip snacks

Company profile
Shandong Arrow Tortilla Making Equipment

Shandong Arrow Machinery Co., Ltd. is a company specializing in R&D, production, sales, application promotion of food engineering projects. As a professional food processing equipment &whole plant engineering problem solvers in China, machines served for more than 970 companies, export to 116 countries, more than 20 years engineering team. We aim to create a great future together with global customers.
* More than 15 years experience
* Professional design,fabrication,installation team
* Professional R&D center
Tortilla Chips Making Machines

FAQ
Q: What kinds of products can be made?
A: corn flakes, puffs, breakfast cereals food, animal feed, animal feed, soy protein texture food.
Q: What's the delivery time?
A: We usually need 40-45 days for large sizes, depends on the finished product, so machine wash-change.
Q: What about the installation service?
A: Depending on the whole line of equipment price list, it usually takes 2-3 weeks. We will provide you with installation instructions, such as start, as well as their operation machines for quality control, testing of different recipes.
Q: What is the warranty period for using the device?
A: 1 year for auger and cylinder due to modular design, changing the wearing parts will be OK, unlike a full set of screws, no need to change the whole set.
