Shandog Arrow corn flakes manufacturing machine manufacturer

Breakfast Cereal Production Line Making Machine Supplier

Model NO.: AHT36-20D
Delivery: FOB， CIF
Minimum order quantity: 1 set
Supply Ability: 20 set / Month
Country of Origin: China
Stock Time: 45 Days

Quantity:

Product Description
Basic Information

Product description

NO.	Name	Brief introduction
1	Raw material	Corn, rice, wheat, oat, barley powder
2	Basic Recipe	Grist powder; sugar; coco; cheese; water

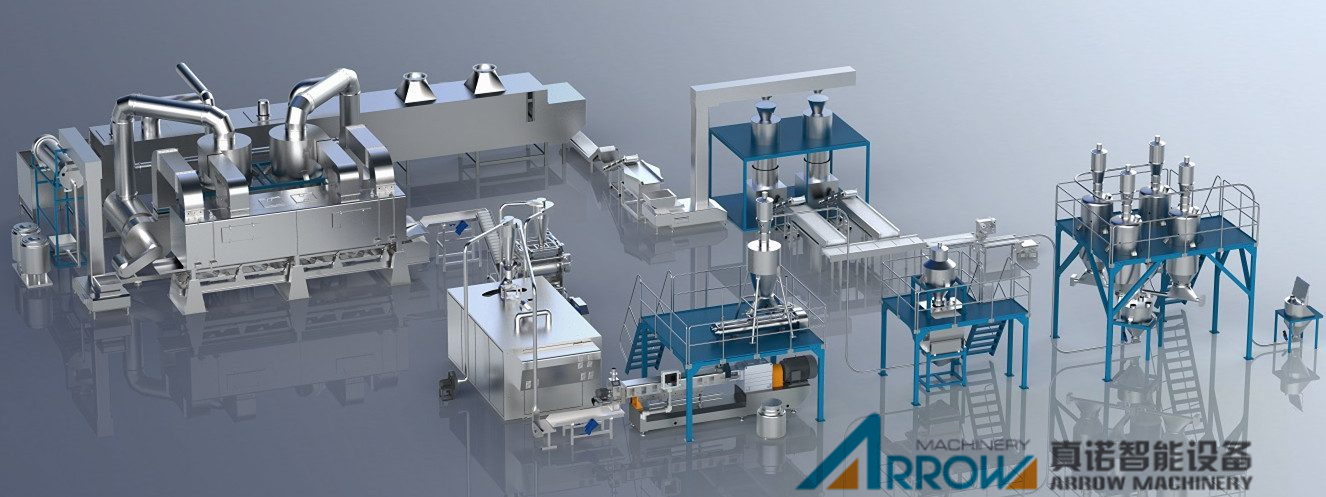

3	Processing flow	Mixing -Extrusion - Flaking -Toasting- Coating-Drying-Cooling-Packing
4	Equipment	Mixer; Screw elevator; Double screw extruder; Air conveyor; Roller dryer; Flaking machine; Conveyor; Dryer; Hoister; Vibrator; Hot air dryer; Flavoring system; Dryer with cooler.
5	Final products	Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder ; corn flakes; cereal snacks
6	Machine material	Stainless steel 304 or as customer’s request

Product sample

Detailed information

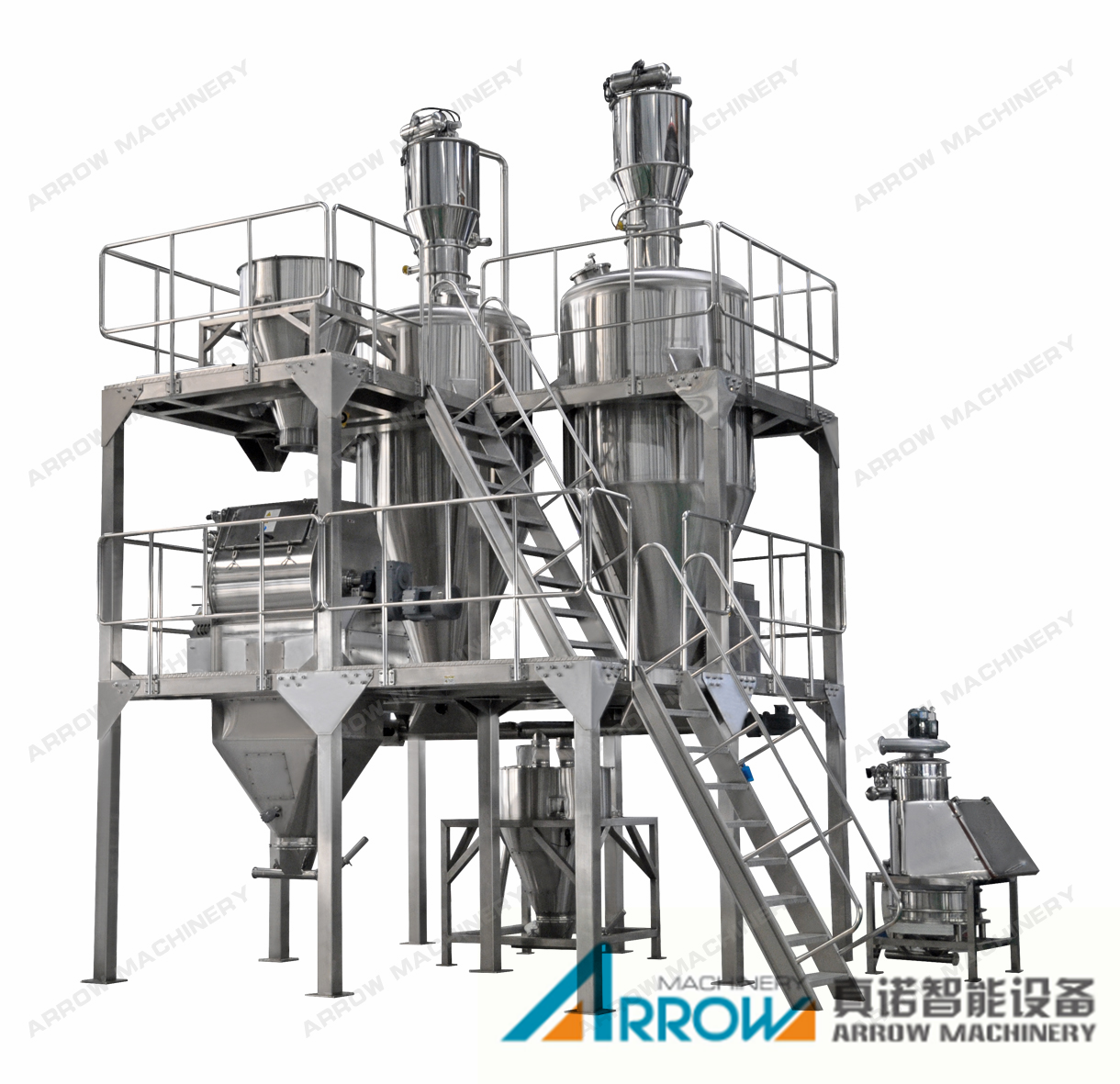

	Name	Automatic multi grains flour handing, dosing,storage, weigh transfer system
	Capacity	200kg/h-1500kg/h,depend on factory space, storage silo,
	Features	1. Used to feeding, storage, transfer,weigh mixing grains flour , ready go to extruder machines 2. Fully automatic, labor cost 3. Fully stainless steel materials 304 made 4. Automatic controlling 5. High precision 6. Dust collection
	Working Principle	Flour transferred by feeding station to storage silo, screw conveyor transfer flour to the weigher machine per batch, flour transfer to the mixing machine, under high speed, ready go to extrusion system

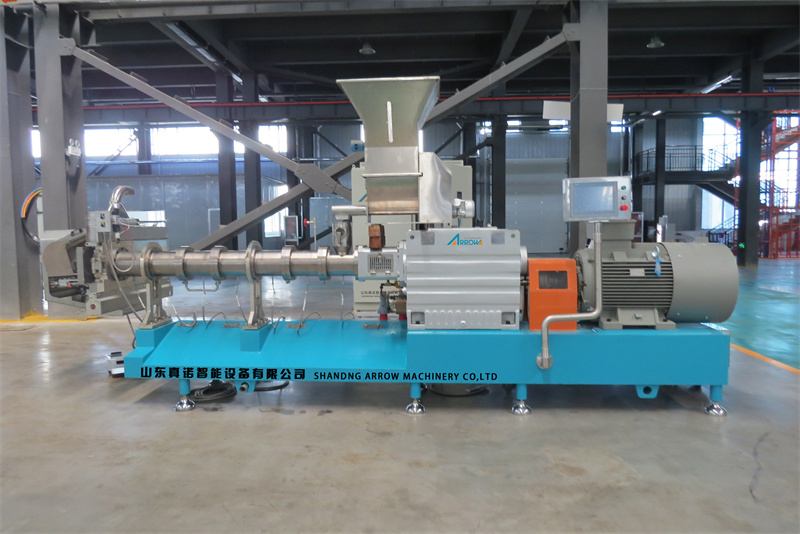

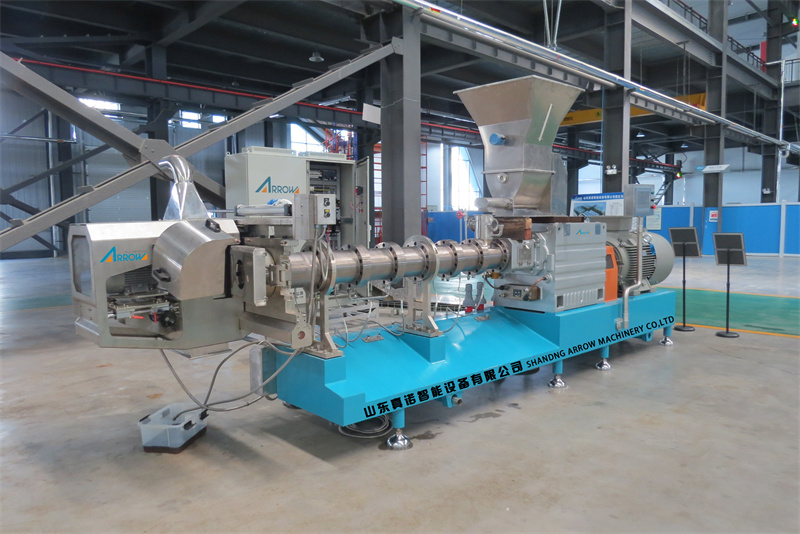

	Name	Doule Screw Extruder
	Capacity	200kg/h-1500kg/h depend on food shape
	Usage	Raw material is curing and puffed in extruder, becoming different shapes of puffing snacks with moulds changing.
	Working rinciple	It consists of 1. Feeding system, 2. Extruding system, 3. Cutting system, 4. Heating system; 5. Cooling system 5. Controlling system. Grains flour get extruded,heated under high pressure formed into various by different forming die nozzles, ready for the flaking, drying or toasting

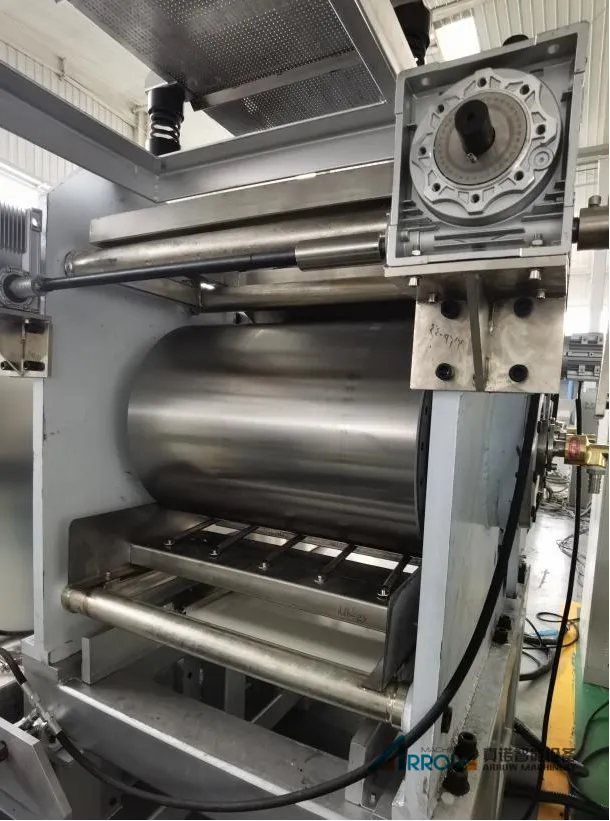

	Name	Flaking machine
	Capacity	100-300kg/h
	Usage	Used flake corn balls pellets into flakes shape
	Working Principle	Machine consist of : 1. Motor driving system 2. Hydraulic drive system 3.Controlling system 4. Infeed distribution system 5.Convey,discharge system Features: 1.Corn pellets get flaked by strong powerful rollers 2.Falking gap adjustable by hydraulic power 3.Strong alloy materials made rollers

	Name	Toaster machine
	Capacity	100-500kg/h depend on different food situation,condition
	Usage	Used for the corn flakes toasting under high temperature also recommend used for the oil-free pellets use
	Feature	Machine used to taste corn flakes under hot temperature , temperature range 200-280degree flakes convey under vibrate plate power move ahead Temperature adjustable Infeed air volume adjustable Touch food parts:SS304

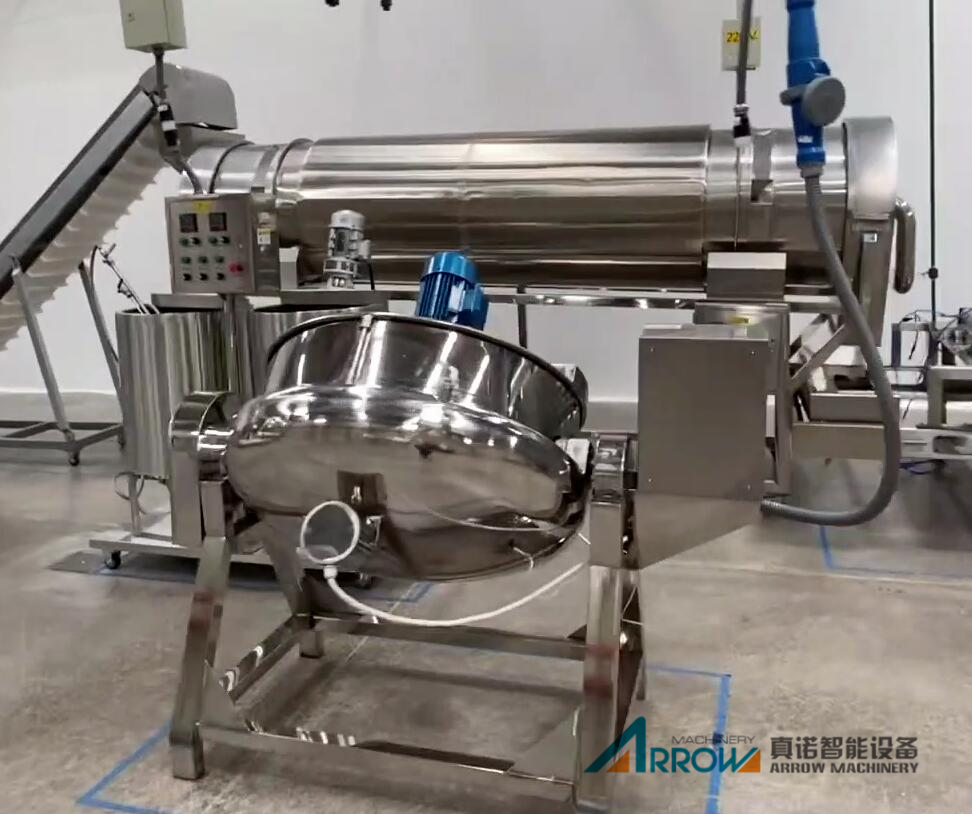

	Name	Syrup coating machine
	Capacity	200kg/h-1500kg/h depend on grains shape
	Usage	This device is applicable to a wide range of cereals snacks in seasoning and coating.
	Working Principle	Consist of components: 1. Coating rotation tank 2. Syrup preparation machine 3. Spray gun 4. Controlling system 5.Heating system Spraying nozzle can adjust oil amount equally. Slurry coating is built up by tumbler system.

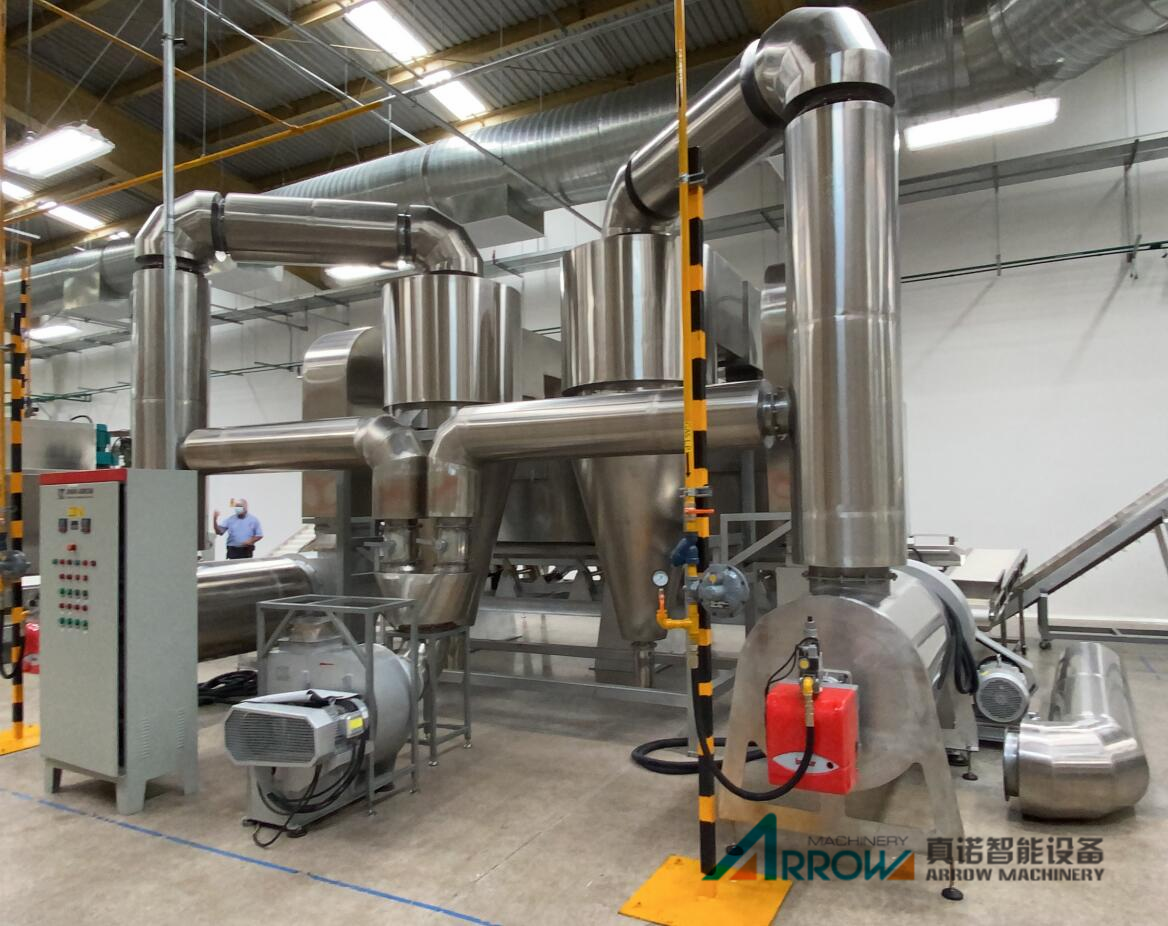

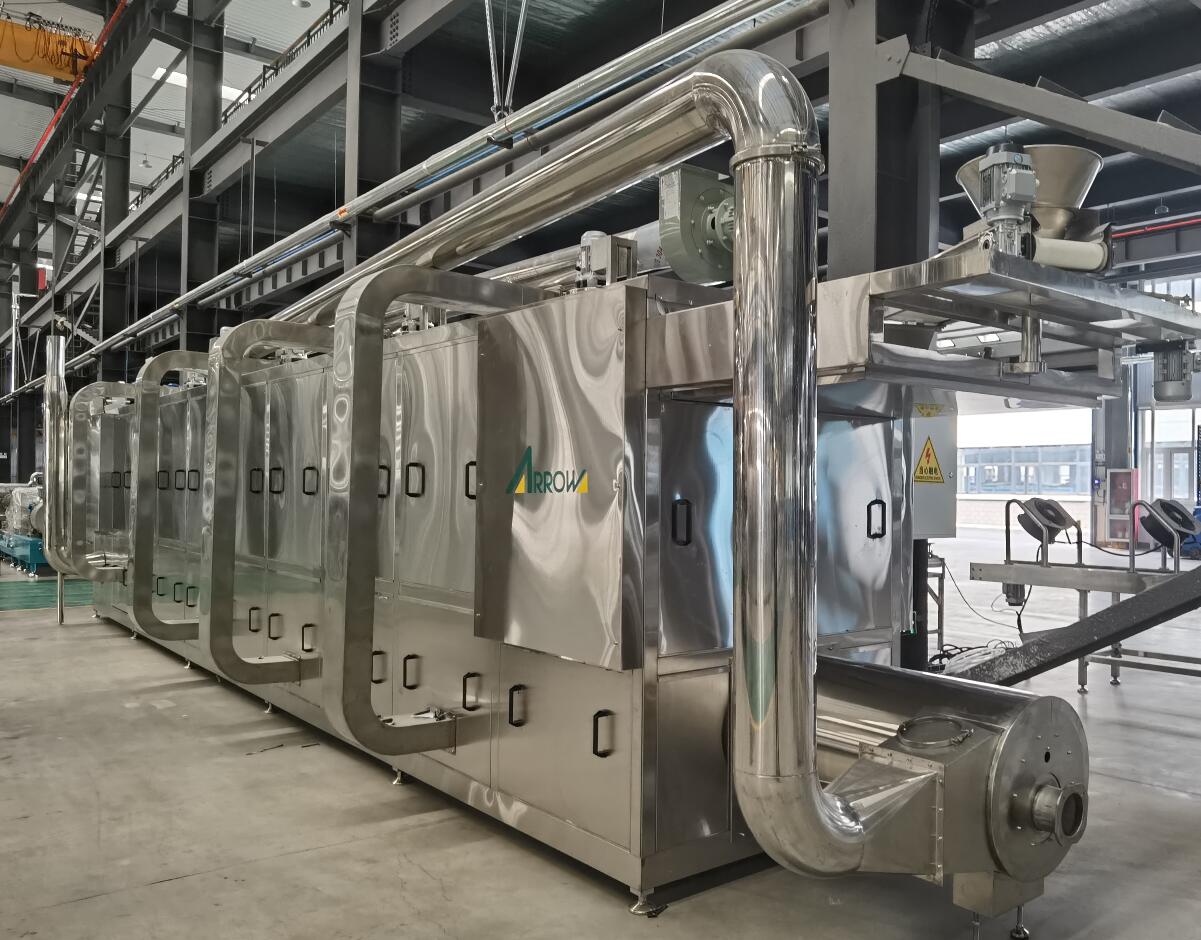

	Name	Multi Layers Hot air circulated Dryer machine
	Capacity	200kg/h-1500kg/h depend on food, moisture
	Usage	Used for cereals drying, moisture, extend storage time
	Working Principle	Heating source can be electric, gas, steam and fuel. The material is stainless steel 304. Machine consist of below components: 1. Drying system 2. Heating system 3. Controlling system 4. Moisture discharge system Features: 1. Drying speed adjustable by inverter 2. Drying temperature adjustable 3. Fully Stainless steel 304

Core characteristic:

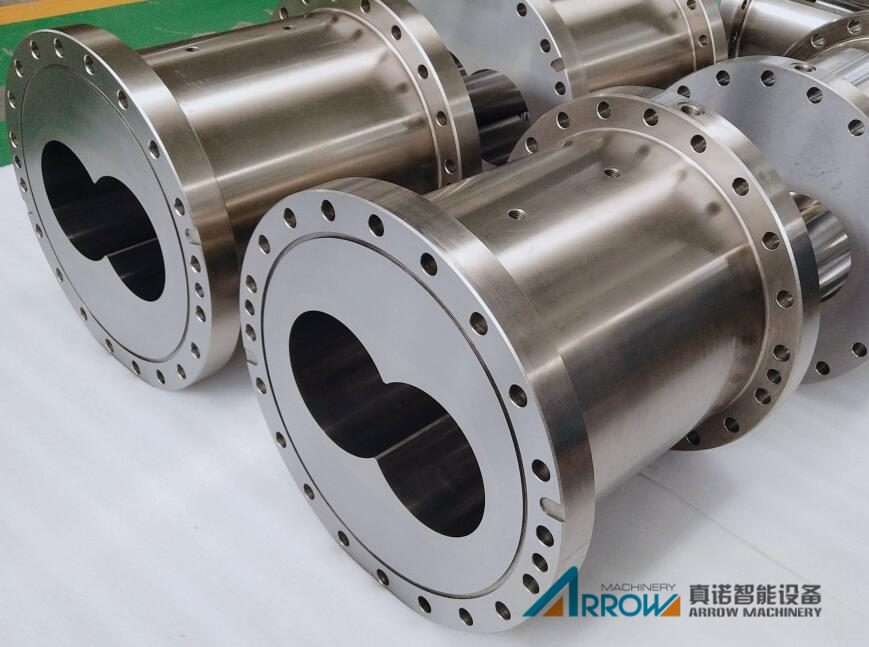

European type modularround barrel

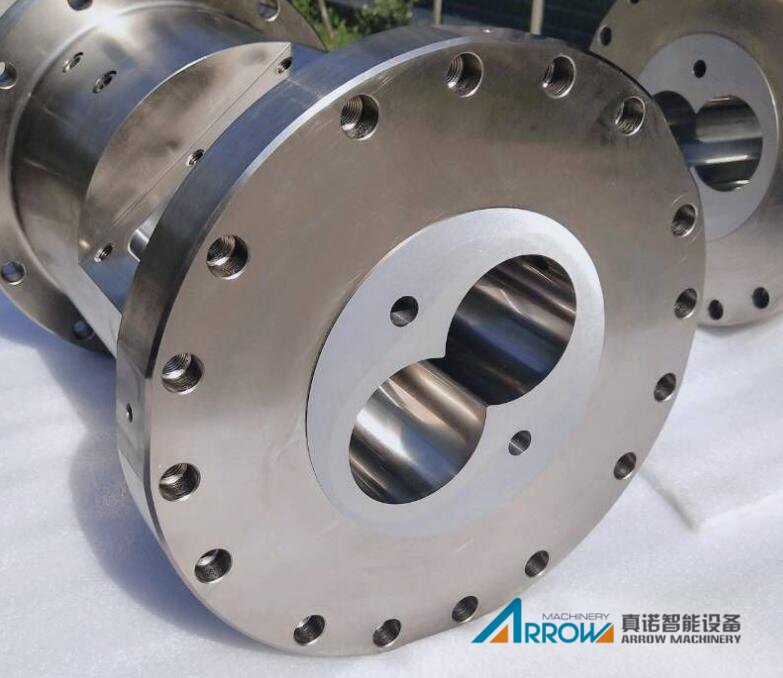

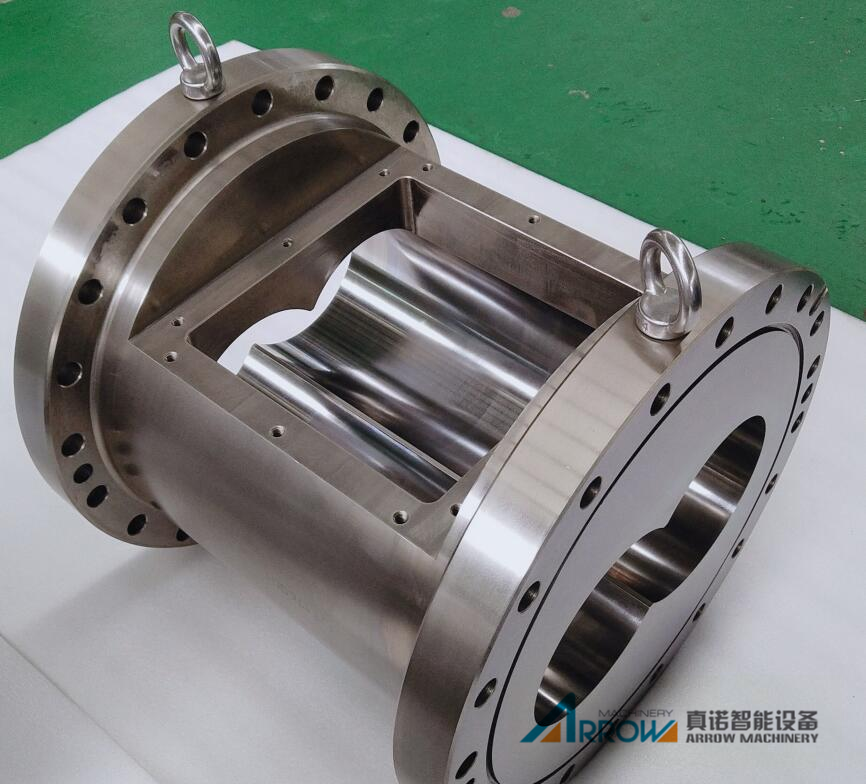

Barrel: European modular 4D-round barrel design, equipped with alloy lining, long work life. The temperature of each zone is controlled independently.

Modularscrew:can adapt to different materials and easy to be changed, don’t need to change full piece of screw, only a part of it. Made of hard alloy, strong wear resistant.

Cutter: with lateral movement to allow exchange of the knife head even during production. European technology design, easyoperation and adjustment.

Powerful direct-cutting system with linear slide rail, available to high production.
Frame: International easy cleaning design

User-friendly automation system forefficient and safe production.

PLC control system, touching screw.

The memory storage function of various parameter settings for users to use

The system has alarm processing, alarm data viewing, and shutdown protection functions

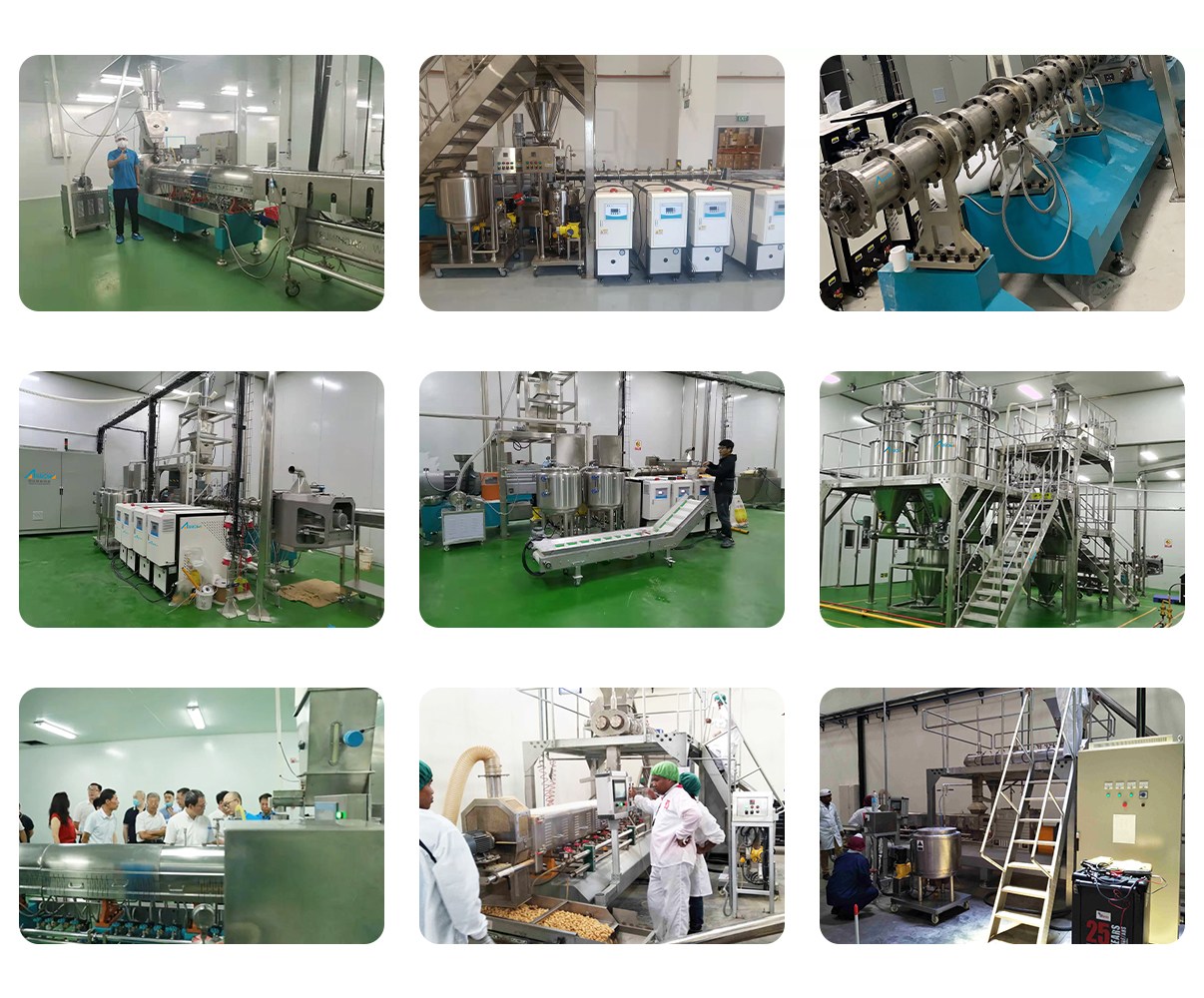

Cutomer case

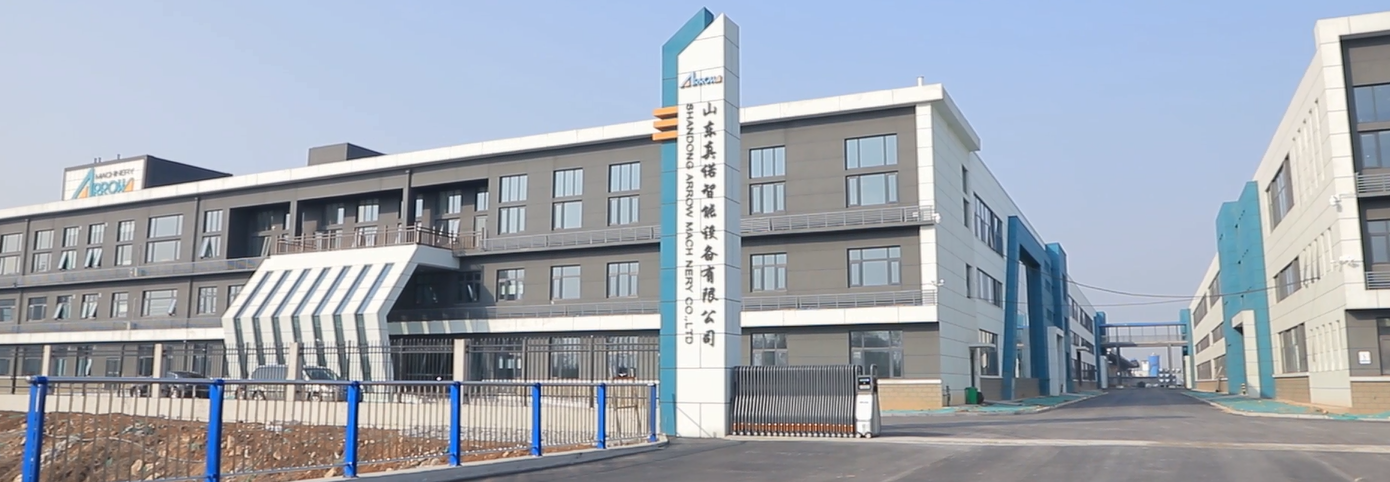

Company profile

Shandong Arrow Machinery Co., Ltd. is a company specializing in R&D, production, sales, application promotion of food engineering projects. As a professional food processing equipment &whole plant engineering problem solvers in China, machines served for more than 970 companies, export to 116 countries, more than 20 years engineering team. We aim to create a great future together with global customers.

* More than 15 years experience

* Professional design,fabrication,installation team

* Professional R&D center

FAQ

Q: What kinds of products can be made?

A: corn flakes, puffs, breakfast cereals food, animal feed, animal feed, soy protein texture food.

Q: What's the delivery time?

A: We usually need 40-45 days for large sizes, depends on the finished product, so machine wash-change.

Q: What about the installation service?

A: Depending on the whole line of equipment price list, it usually takes 2-3 weeks. We will provide you with installation instructions, such as start, as well as their operation machines for quality control, testing of different recipes.

Q: What is the warranty period for using the device?

A: 1 year for auger and cylinder due to modular design, changing the wearing parts will be OK, unlike a full set of screws, no need to change the whole set.
