SHANDONG ARROW MACHINERY CO.,LTDAbout UsNO.47 CHENGBOHU ROAD, JIYANG DISTRICT, JINAN CITY, CHINAShandong Arrow Machinery Co., Ltd. is a company specializing in R&D, production, sales, application promotion of food engineering projects. As one of the largest scaled food processing equipment &whole plant engineering problem solvers in China, machines served for more than 970 companies, ,export to 116 countries,area, more than 20 years engineering team.
Our main products are food extruders, dryers, fryers etc. We can offer the whole turnkey plant for making corn flakes and breakfast cereals, nutrition and instant rice, plant based protein meat, pet food and fish feed, various etc.SHANDONG ARROW MACHINERY CO.,LTDAbout UsNO.47 CHENGBOHU ROAD, JIYANG DISTRICT, JINAN CITY, CHINAShandong Arrow Machinery Co., Ltd. is a company specializing in R&D, production, sales, application promotion of food engineering projects. As one of the largest scaled food processing equipment &whole plant engineering problem solvers in China, machines served for more than 970 companies, ,export to 116 countries,area, more than 20 years engineering team.
Our main products are food extruders, dryers, fryers etc. We can offer the whole turnkey plant for making corn flakes and breakfast cereals, nutrition and instant rice, plant based protein meat, pet food and fish feed, various etc.SHANDONG ARROW MACHINERY CO.,LTDSHANDONG ARROW MACHINERY

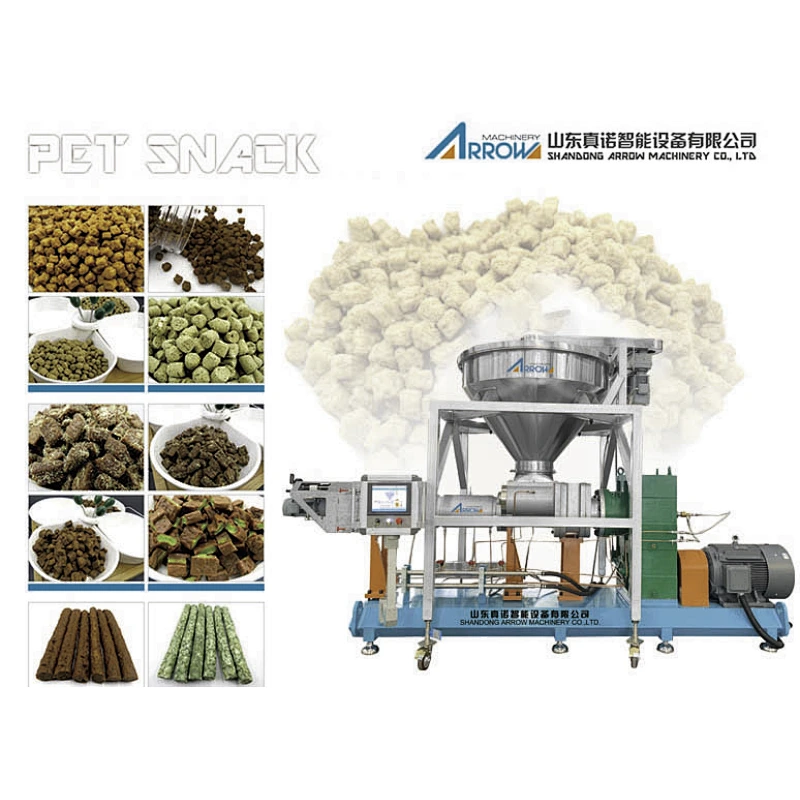

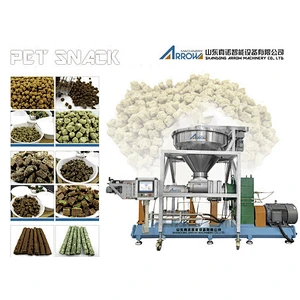

Technical parameters of Cold Extrusion Pet Treats Making Machine Dog treats meat making machine: 1. Main motor reducer: 75kw, the equipment does not have a main motor inverter. 2. Rotary cutting motor reducer: 2.2KW, frequency conversion speed regulation; The rotary cutting adopts the left side door style, and the rotary cutting motor reducer is directly connected to the rotary cutting knife shaft. 3. Forced feeding motor: 3kw, frequency conversion speed regulation; The volume of the feeding bin is 1m³, The feeding silo is equipped with a floor caster rack, which can be forced to feed. 4. Cooling: water circulating cooling. The main screw shaft, two feeding shafts, front barrel and rear barrel are cooled by water circulation. 5. Screw: screw diameter 200mm The mandrel is a semi-combined structure. By changing the compression ratio and adjusting the pressure, products with different organizational structures can be obtained; The total length of the screw is 2093. 6. Barrel: The total length of the barrel in the extrusion section is 1255. The barrel is divided into two areas for cooling, and both are equipped with temperature sensors. 7. Delta touch screen. 8. Output: 2500-3000KG/H (reference data will vary according to material characteristics). 9. Except for the main motor without a frequency converter, all other frequency converters of the equipment are Delta frequency converters. 10. Mould: According to the size required by Party A, four sets of moulds will be presented and shipped with the equipment. We offer Cold Extrusion Pet Treats Making Machine Dog treats meat making machine to make high meat content pet food
After-sales Service Provided：Engineers available to service machinery overseas
cold extruder for pet dry food low-temperature baked food, pet semi-moist food, meat and meat strips
LTE200
0.00~0.00
1. The equipment is composed of a driving part, a feeding part, an extrusion part, a mold and a forming and cutting part, and a control system. 2. products: pet dry food low-temperature baked food, pet semi-moist food, meat and meat strips, etc.; 3. Applicability of raw materials: The raw materials of the formula can be applied widely, such as fresh meat and meat meal, soy meal, protein powder, grain, fiber, other micronutrients, etc.; 4. The extrusion molding temperature is controllable and equipped with different cooling media, which can achieve the low temperature extrusion required by the raw material; 5. By adjusting the formula and the design of the mold, it is possible to produce particles, bars, flakes, etc. of various shapes and different hardness;
cold extruder for pet dry food low-temperature baked food, pet semi-moist food, meat and meat strips
LTE200
0.00~0.00
1. The equipment is composed of a driving part, a feeding part, an extrusion part, a mold and a forming and cutting part, and a control system. 2. products: pet dry food low-temperature baked food, pet semi-moist food, meat and meat strips, etc.; 3. Applicability of raw materials: The raw materials of the formula can be applied widely, such as fresh meat and meat meal, soy meal, protein powder, grain, fiber, other micronutrients, etc.; 4. The extrusion molding temperature is controllable and equipped with different cooling media, which can achieve the low temperature extrusion required by the raw material; 5. By adjusting the formula and the design of the mold, it is possible to produce particles, bars, flakes, etc. of various shapes and different hardness;
